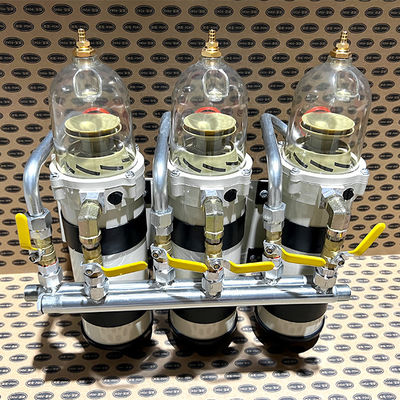

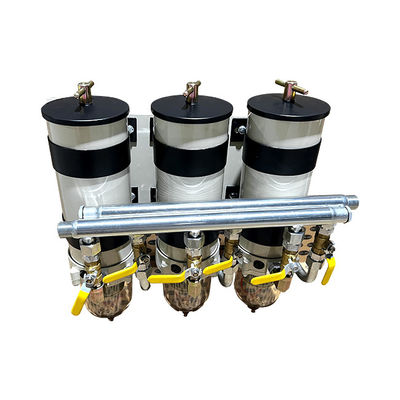

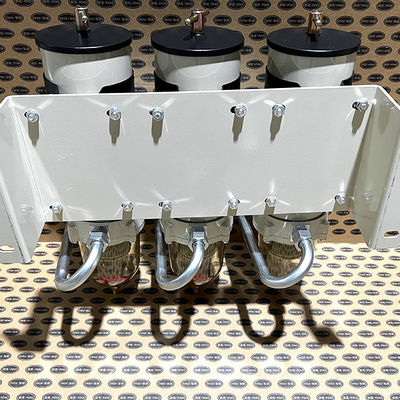

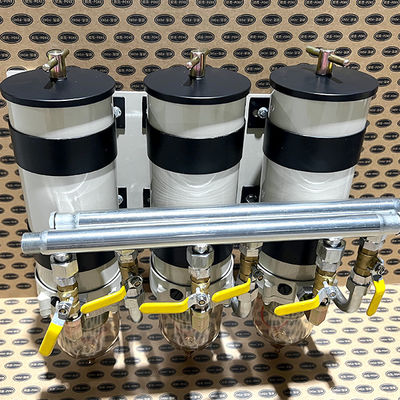

791000 Dual Turbine Assembly Fuel Filter Element 2020PM 791000FHV30 771000MA

791000 Dual Turbine Assembly 2020PM Fuel Water Separator Filter 791000FHV30 771000MA

30 Micron (98% @ 30 Micron) - Ideal as a pre-filter to protect downstream filters from excessive contamination. Extends the life of engine filters.

10 Micron (98%@10 Micron) - Captures more contaminants than 30 Micron elements and is more effective at stopping water. Extends the life of the entire fuel system. The most popular choice.

"2" Micron (98% @ 4 Micron) - Maximum water removal and filtration, capable of protecting all modern injection systems while greatly extending the life of difficult-to-repair engine filters.

How they work

For best performance, the Turbo Series filter assembly should be installed on the vacuum side of the transfer pump. They remove pollutants from fuel using the following three-stage process:

Stage 1 - Water Separation: As fuel enters the filter assembly, it moves through the centrifuge and separates out large solids and water droplets, which fall to the bottom of the collection bowl.

Stage Two - Coalescing: Small water droplets bead up on the surface of the conical baffle and filter element. When heavy enough, they will fall to the bottom of the bowl.

Stage Three - Filtration: The filter element blocks and captures fine hard and soft contaminants while remaining water condenses on the media surface. The coalesced water gathers into larger droplets, which then fall into the clear collection bowl.

Specifications:

Related Models:

837079727, 837079726, SK48591, SK48591-SET, 837079728, SN40670, SN40671, 837079718, 837079556, 837079555, 837079245, 837079244, 5207543, 52075740, 52075743

Factory Profile

Yuanbang Filtration Technology (Langfang) Co., LTD., founded in 2004. Over the years, we have been keen to serve every customer, customized professional products for different customers, to provide the best pre-sale and after-sales service.

The company is located in Langfang, known as the Beijing-Tianjin corridor. Is a research and development, production, sales, service in one of the modern enterprises.Products are widely used in metallurgy, petroleum, chemical industry, electric power, coal, mining, pharmaceutical, beverage, food electronics, construction machinery and other industries.

The main production and sales: hydraulic filter element, oil filter, oil filter, oil filter, water filter, air filter, natural gas filter and so on.


FAQ

Q1. What is your main products?

A: Oil filter and fuel filter,and our product positioning is mid- to high-end market.

Q2. Are you factory?

A: Yes, we are not only just factory, but also have professional service team, includes sales, technical staff, QC, after-sales staff etc.

Q3. What is the size of your company?

A: 10,000 square meters workshop, more than 100 employees, 10 million pieces annual output, 20 testing equipments, there are 4 production lines currently, we also have our own laboratory.

Q4. What are your advantages?

A: Rapid development of new products, full range of products, professional service (timely quotation and reply promptly, strict quality inspection, strong in after-sales problem solving).

Q5. Which is your major export markets?

A: USA, Russia, other countries such as Romania, Italy, Argentina, Egypt and so on.

Q6. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q7. What is your sample policy?

A: We can supply the sample if we have stock, new customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.

Q8: How to ensure your product quality? how to deal with your customers encountered product problems?

A: We start test from the raw material filtration capacity, full inspection during production, examined before delivery. If there are any quality problems, we will refund or replace the goods after we have confirmed or third-party inspection confirmed.

Q9. How long is the warranty?

A: Under normal working conditions, usually it is 8,000 to 10,000 kilometers.

Q10. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
